Bom India Forge and Fittings is a leading stockist and supplier of premium quality Industrial Flanges. Engineered to securely connect pipes, valves, pumps, and other equipment, our flanges provide reliable, leak-proof joints that allow for easy cleaning, inspection, and system modification. We maintain a comprehensive inventory of forged and plate flanges across various pressure classes, dimensions, and face types to meet the rigorous demands of the oil & gas, petrochemical, power generation, and marine industries.
| Specification | Details |
|---|---|
| Flange Types | Weld Neck (WNRF), Slip-On (SORF), Blind (BLRF), Socket Weld (SWRF), Threaded, Lap Joint, Spectacle Blind, Orifice Flanges |
| Size Range | 1/2" (15 NB) to 48" (1200 NB) — Larger sizes available upon request |
| Pressure Classes (ANSI / ASME) | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Classes (DIN / EN) | PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 |
| Flange Face Types | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Tongue & Groove (T&G), Male & Female (M&F) |
| Manufacturing Standards | ASME / ANSI B16.5, B16.47 (Series A & B), B16.48, AWWA C207, DIN, EN 1092-1, BS 4504 |
| Production Methods | Forged, Cast, and Plate Machined |
| Bore Schedule (For Weld Neck) | SCH 5, SCH 10, SCH 40, SCH 80, SCH 160, XXS (Machined to match corresponding pipe thickness) |
We supply Flanges across a wide spectrum of premium forged alloys to ensure perfect compatibility and pressure integrity within your piping systems.
| Material | Grades | Standard (ASTM / ASME) |
|---|---|---|
| Stainless Steel | F304/304L, F316/316L, F310, F317L, F321, F347, F904L | A182 / SA182 |
| Duplex & Super Duplex | UNS S31803 (F51), S32205 (F60), S32750 (F53), S32760 (F55) | A182 / SA182 |
| Titanium | Grade 2, Grade 5, Grade 7 | B381 / SB381 |
| Inconel / Incoloy | 600, 601, 625, 718, 800, 800H, 825 | B564 / SB564 |
| Monel | Monel 400, Monel K500 | B564 / SB564 |
| Hastelloy | C276, C22, B2, B3 | B564 / SB564 |
| Copper & Brass | Electrolytic Copper, Commercial Brass, Aluminum Brass | B152, B283 |

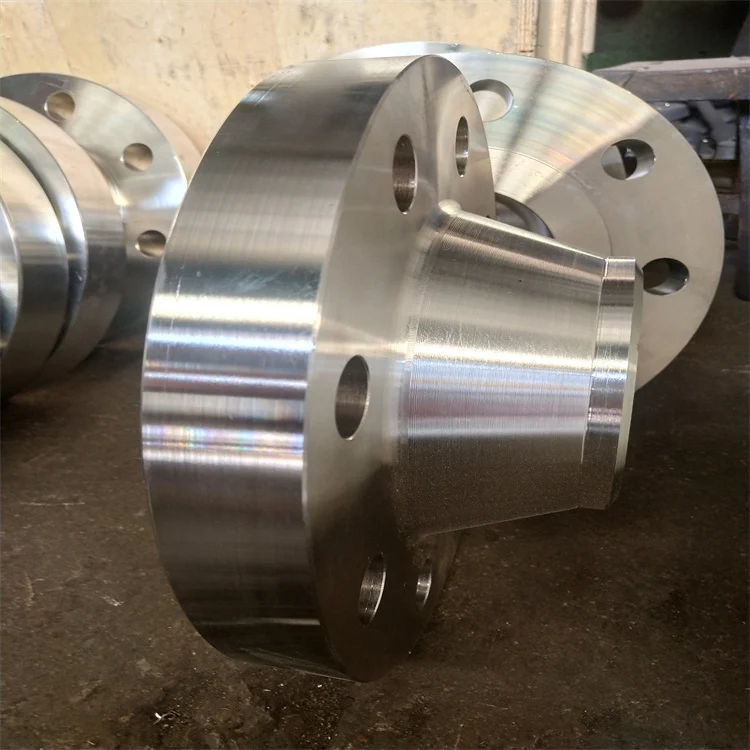

Recognized by their long tapered hub, these flanges are butt-welded directly to the pipe. The hub transfers stress from the flange to the pipe, making them the standard choice for high-pressure, severe-condition applications.

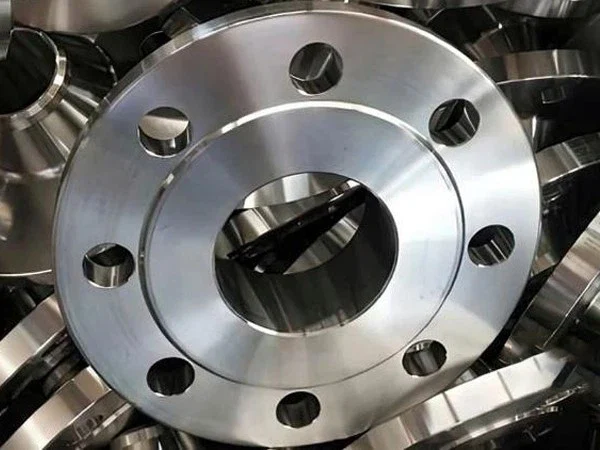

These flanges slip over the outside of the pipe and are welded both inside and outside to provide strength and prevent leakage. They are cost-effective and easier to align than weld neck flanges.

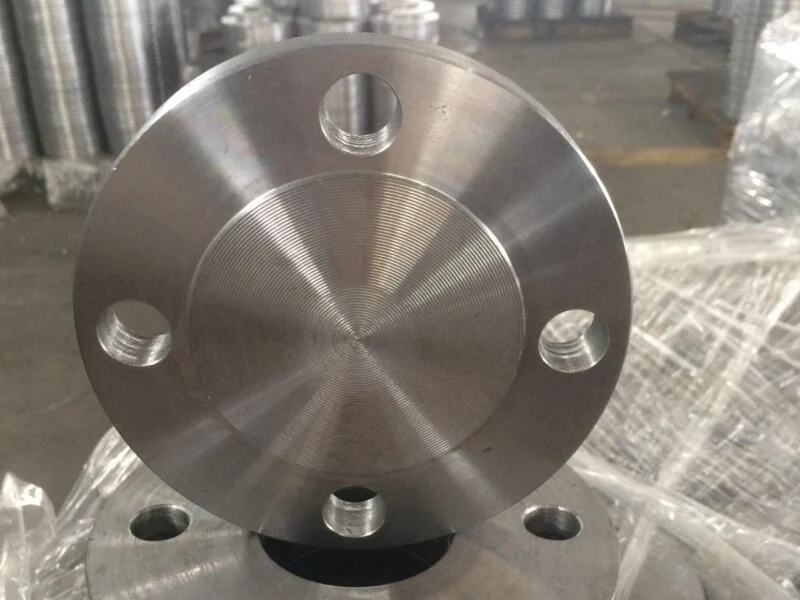

Manufactured without a center bore, blind flanges are used to blank off the ends of piping systems, valves, and pressure vessel openings. They endure high stress from internal pressure.

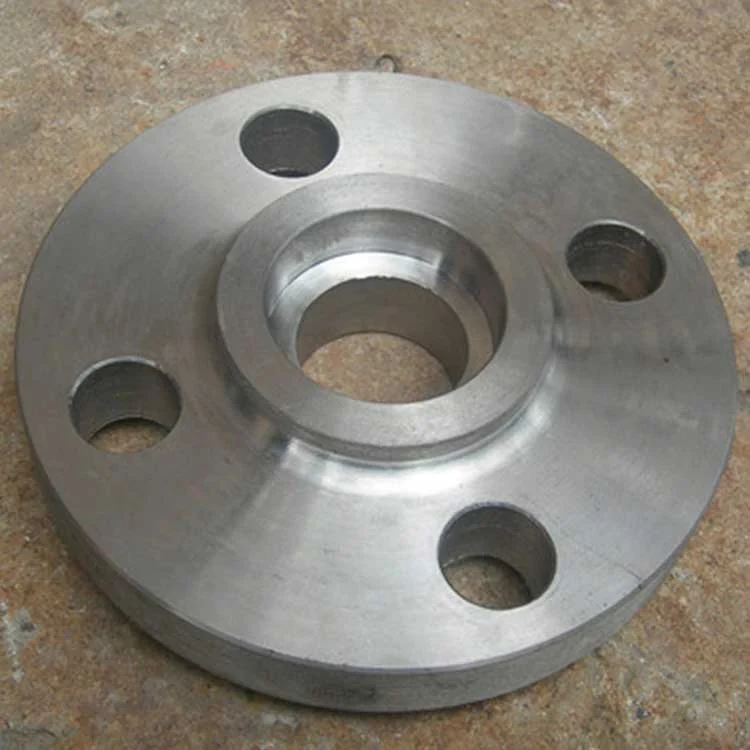

Designed primarily for smaller-diameter, high-pressure piping. The pipe is inserted into the socket of the flange and secured with a single fillet weld on the outside, ensuring a smooth internal bore.

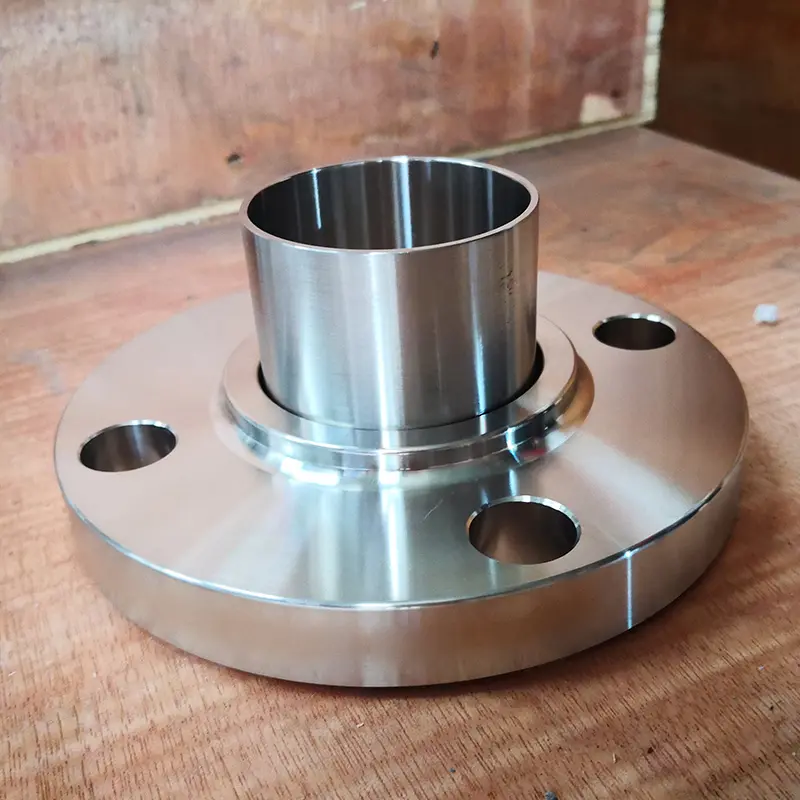

Used in conjunction with a "Stub End" fitting. The flange itself is not welded to the pipe, allowing it to rotate freely for easy alignment of bolt holes. Highly economical for systems utilizing expensive alloy pipes.
Unlike permanent welds, flanged joints allow for quick dismantling, making inspection, modification, and cleaning of piping systems highly efficient.
Precision-machined facings (such as Raised Face and Ring Type Joint) ensure an impeccable, leak-proof seal even in high-vibration environments.
Strict adherence to ASME B16.5 and EN 1092 standards guarantees exact bolt-hole alignment for seamless mating with valves and pumps.
Fully backed by Mill Test Certificates (MTC) with Heat Numbers, Size, and Class stamped directly on the flange edge for transparency.
Contact Bom India Forge and Fittings for competitive pricing, technical data sheets, and immediate stock availability.
